UMIX
One Screen. Two Systems. One Seamless Experience.
It allows casinos to split a section of an existing gaming screen for external hardware systems, such as player tracking terminals or third-party marketing boxes.
Built for expansion without disruption Subtitle
UMIX adds a secondary system to an existing gaming display, while keeping the original machine logic intact.

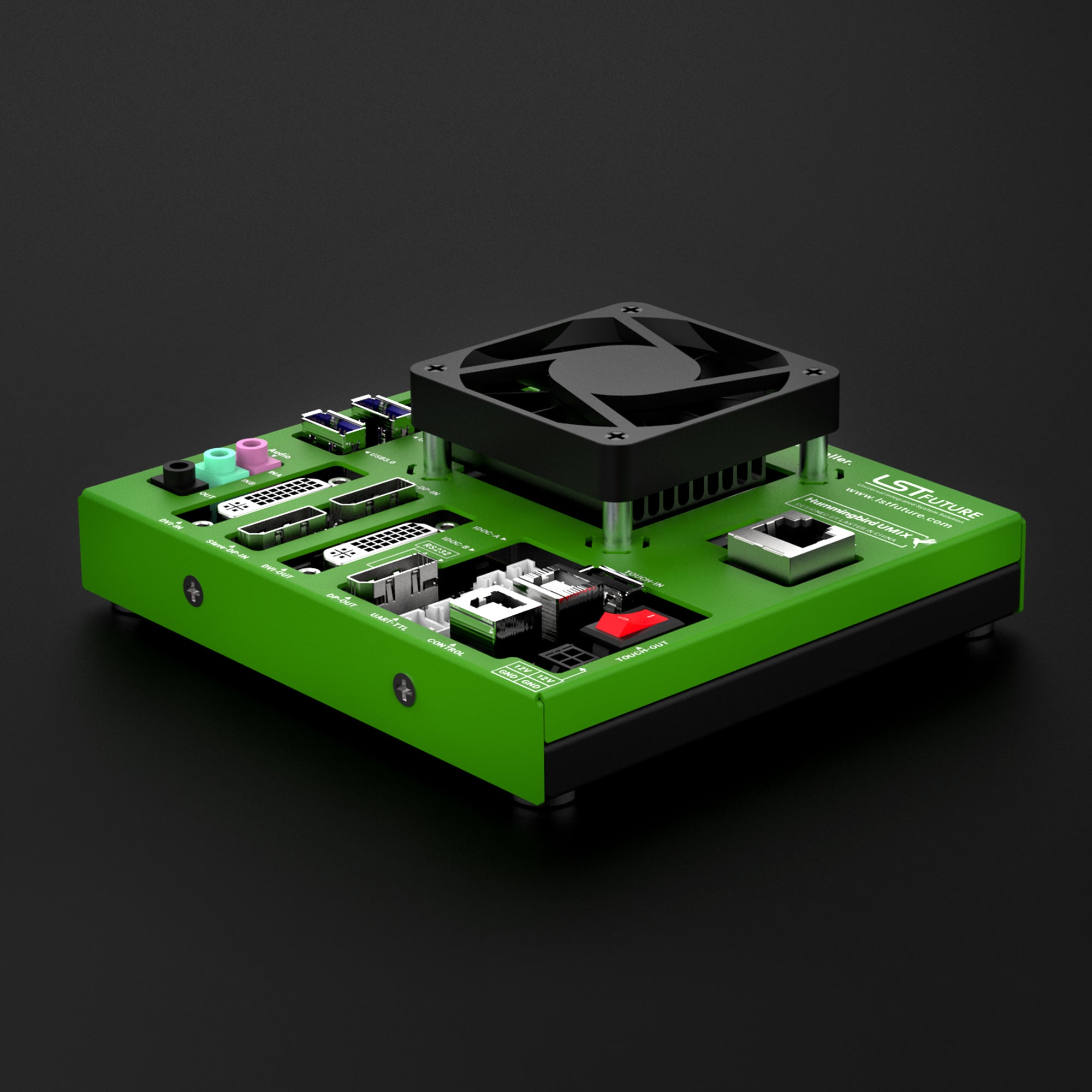

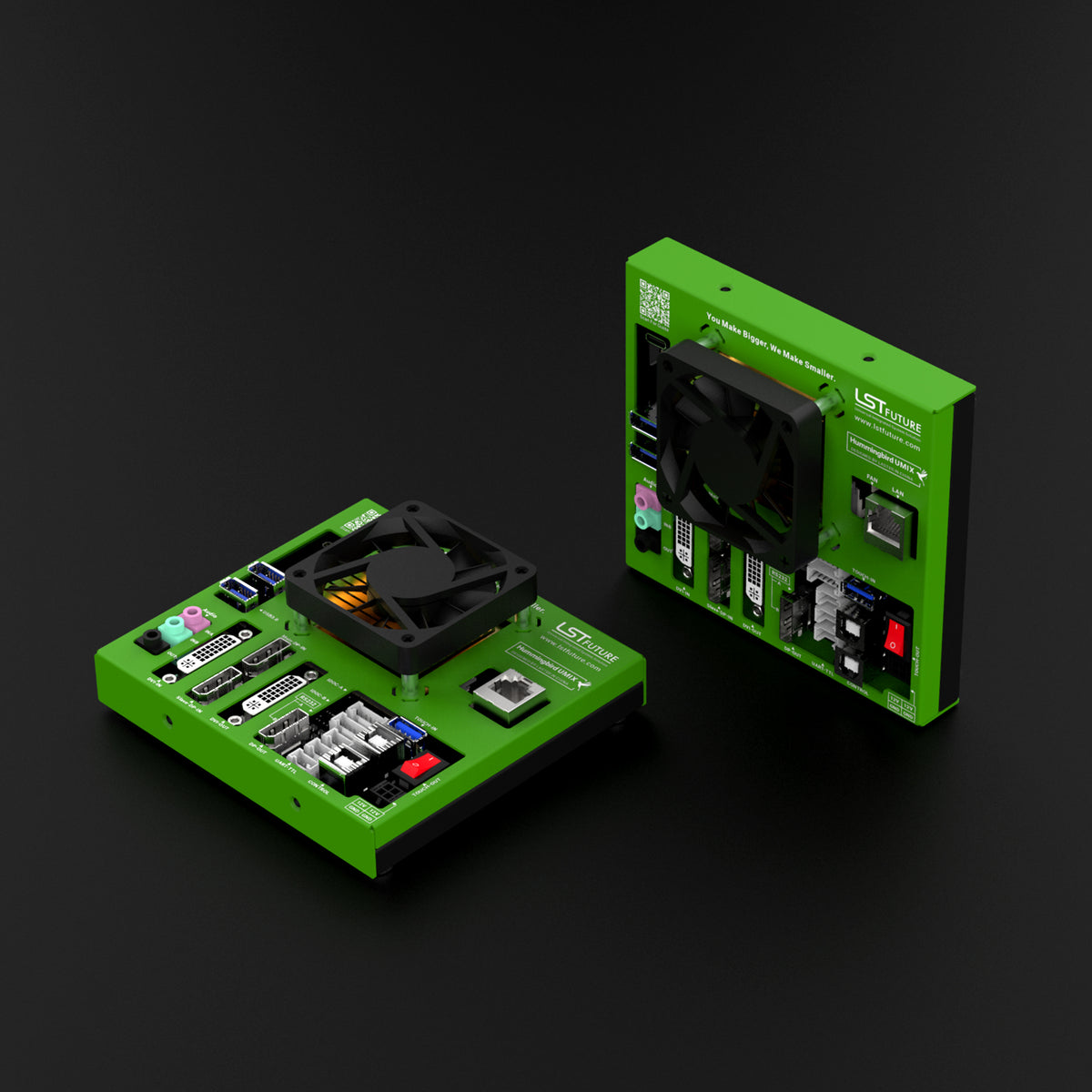

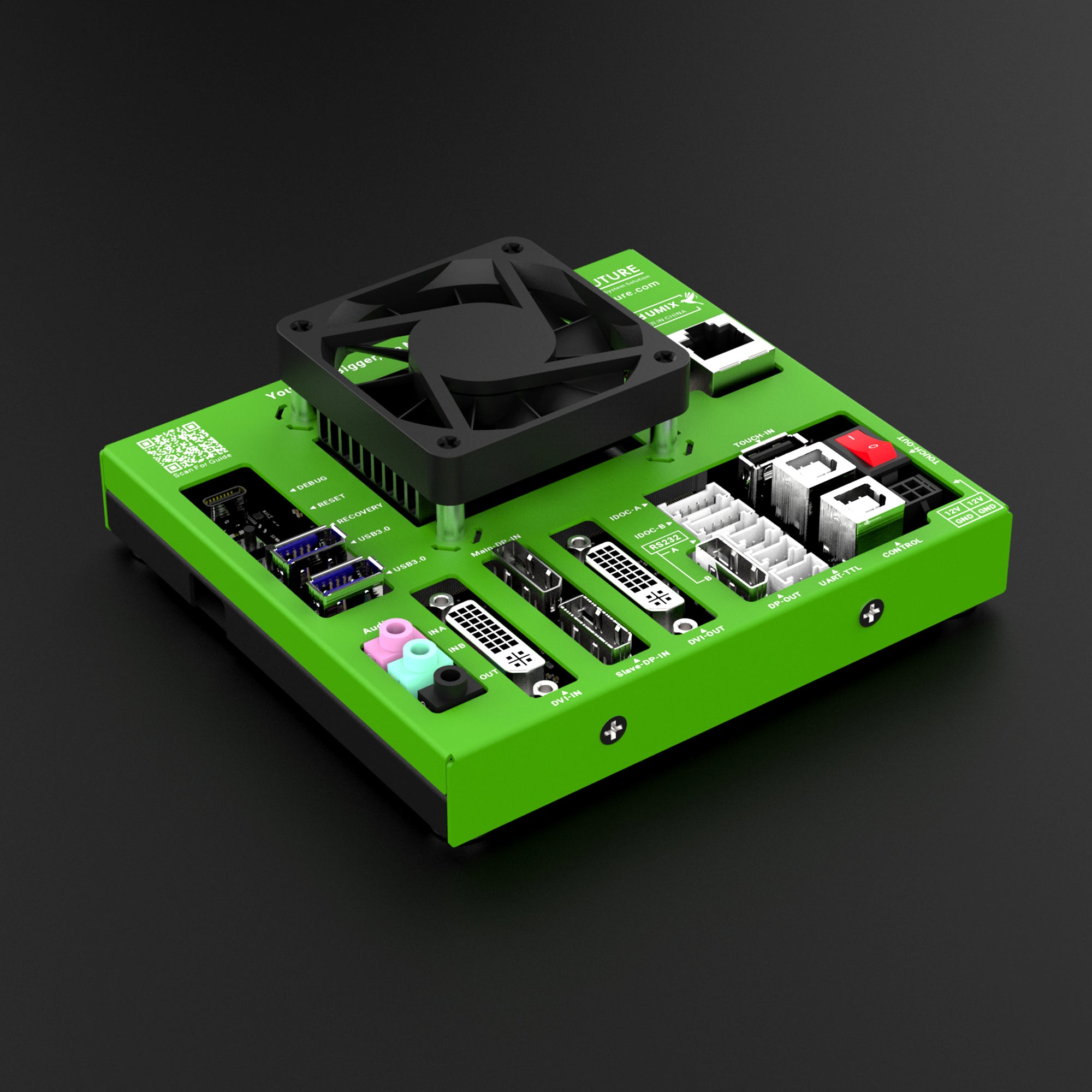

UMIX is not designed to replace the original slot system.UMIX works as a lightweight integration board between the gaming system and an external device.It helps casinos add player tracking, marketing content, or third-party interfaces onto the same screen, with stable video mixing and accurate touch response.
• No need to rebuild the original machine architecture
• One display for both main and external systems
• Accurate touch routing for both screen regions
• Ideal for upgrade and retrofit projects
When one screen must serve two functions
UMIX solves the integration challenge of showing external content on an existing slot display.

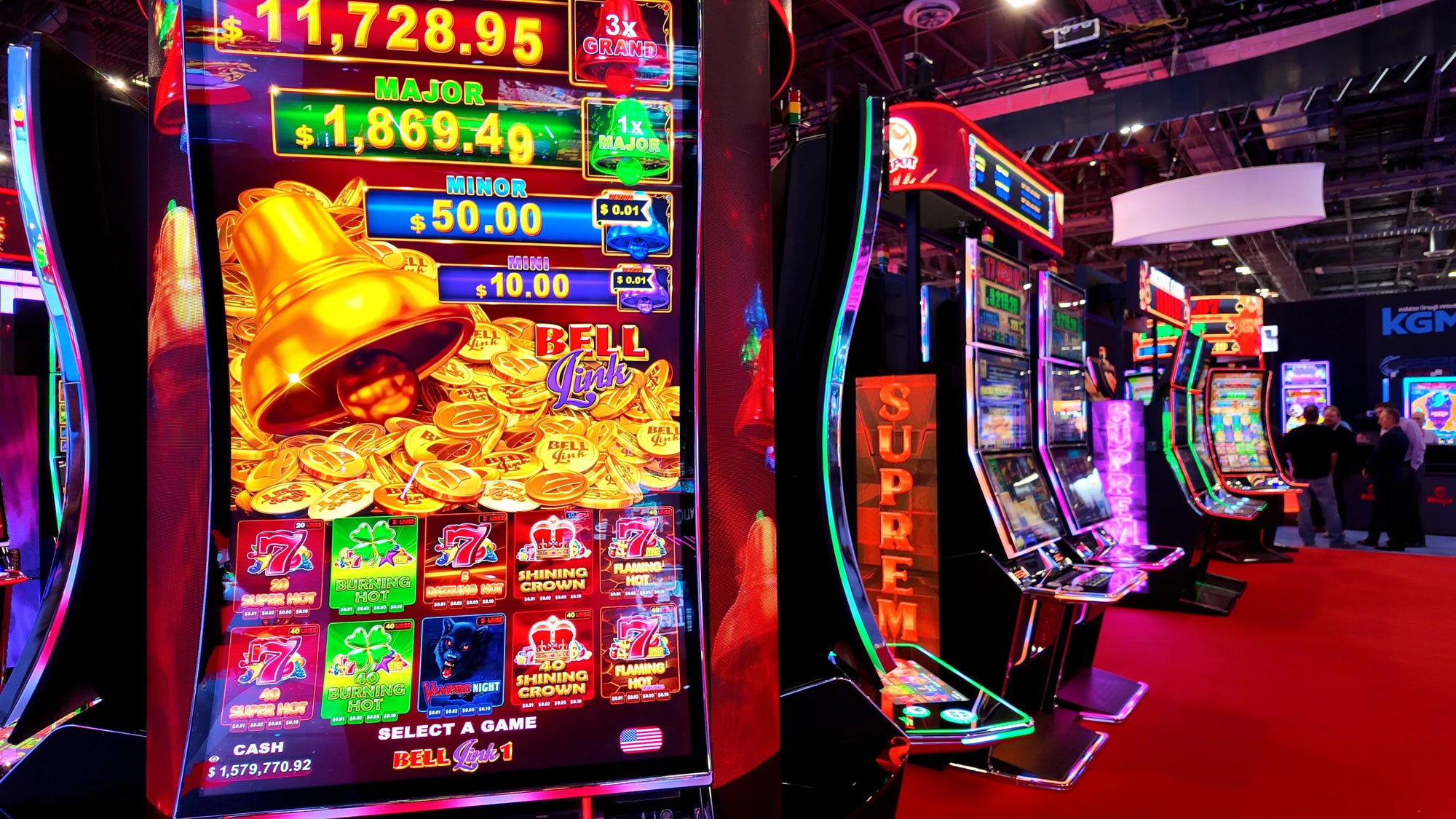

Many casino projects need to add new hardware functions to existing slot machines. The challenge is simple. The original display is already occupied by the game system.
UMIX solves this problem by mixing the original game video and the external system video into one output. At the same time, UMIX identifies where the player touches and routes the signal to the correct target.
Hardware-Level Dual Channel Video Mixing Video Mixing
Mix the original game screen and an external system into one display output.
UMIX supports dual-channel video input. The main channel receives the original game video from the slot machine. The secondary channel receives video from an external device,such as a player tracking system or marketing box.UMIX then outputs the mixed content throughone display connection,creating a smooth dual-system viewing experience on a single screen.
Main input：DP up to 3840×2160@60Hz, DVI up to 4K@30Hz
Secondary input ：DP up to 4K@30Hz
Output：DP up to 4K@60Hz or DVI up to 4K@30Hz

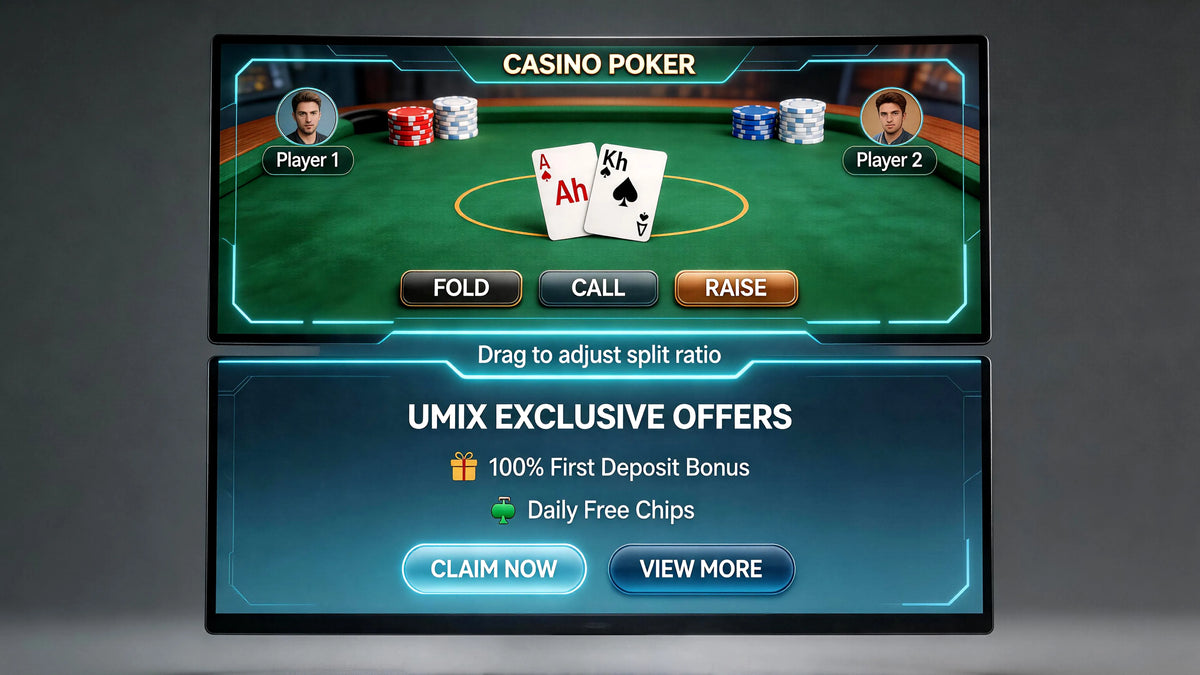

Flexible Split-Screen and Picture-in-Picture Control
Display two systems in one screen with adjustable layouts and ratios.
UMIX supports multiple hardware-based split-screen modes. It allows left-right split, top-bottom split, and other layout options. It also supports fine ratio control between the main and secondary display areas. This gives casino operators more freedom when integrating tracking interfaces, promotions, or external applications into the gaming display.
• Four hardware split-screen modes
• Adjustable main and secondary display ratio
• Supports picture-in-picture style display logic
• Suitable for tracking, promotion, and interactive content
Instant Touch Capture and Intelligent Coordinate Remap
Keep game touch accurate while enabling interaction with the external system.
UMIX captures touchscreen signals through USB or serial input. When the player touches the main game area, UMIX transparently passes the signal to the original slot machine system while preserving protocol compatibility. When the player touches the secondary area, UMIX automatically redirects the touch event to the external system. At the same time, UMIX performs coordinate remapping based on the active screen layout, so the touch response remains precise.
• USB and serial touchscreen signal capture
• Transparent pass-through to the original EGM system
•Automatic coordinate remap based on screen layout
• Accurate touch routing for both systems
Standard HID Output for External System Response
Touch events from the secondary area can be delivered as standard HID signals.
When a user interacts with the external display area, UMIX can simulate the output as a standard HID device. This allows the external system to receive the action in familiar formats, reducing integration complexity and improving compatibility with third-party devices.
• Mouse
• Touchscreen
• Touch Pad
• Touch Pen

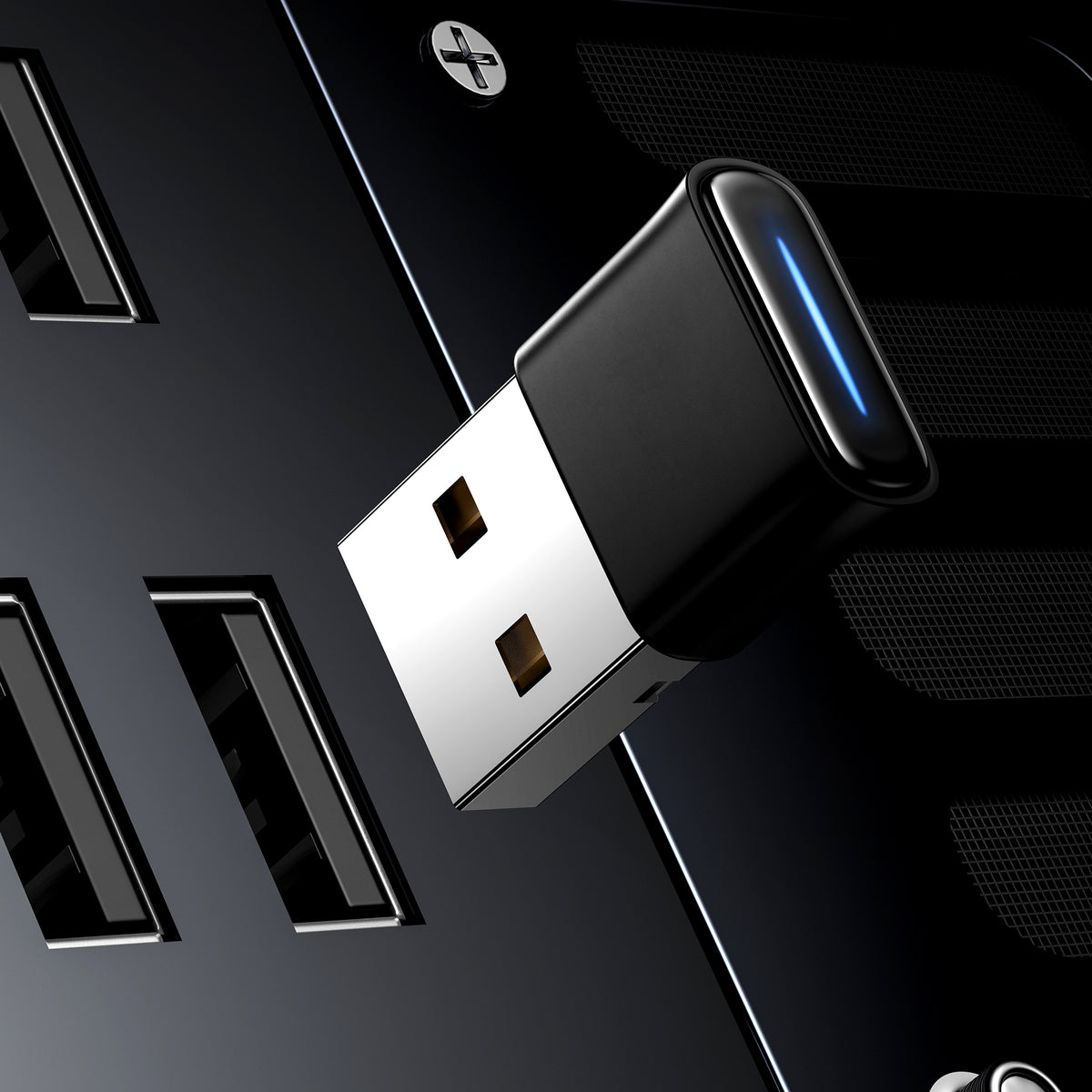

A slave-control architecture built for external host command
UMIX runs on Android and operates as a controlled device under an external host system.Body Copy
UMIX uses a subordinate command-driven model. It can connect to an external host system through USB and respond to host-side control logic. The external system can drive UMIX through low-level hexadecimal command packets to adjust screen ratio, output logic, and other behavior with precision.
• Android operating system
• USB HID driver-free mode
• USB Bulk custom developer mode
• Low-level hexadecimal command control
Ready for more than video and touch
UMIX is designed with future expansion and hardware linkage in mind.

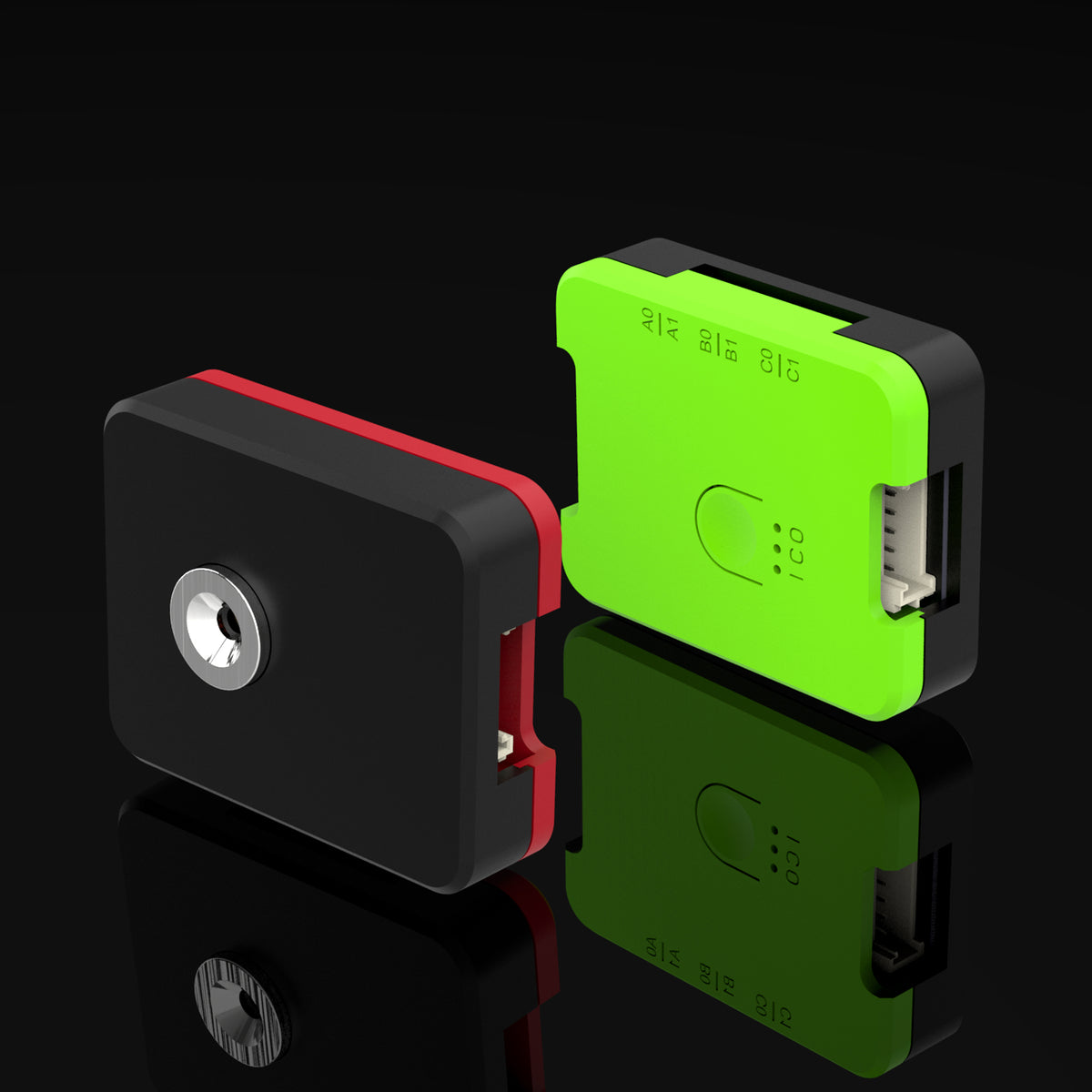

UMIX includes dedicated expansion support for LSTFuture IDOC modules. This allows external switch detection, button state monitoring, and output control expansion. The board also includes audio mixing hardware design for future versions that require mixed sound from both the main and secondary systems.
IDOC expansion interface
• IDOC expansion interface
• External switch and button state detection
• Output control extension
• Audio mixing hardware reserved for future updates
Designed for real casino integration needs
UMIX fits projects that require more function from the existing screen.
UMIX can reserve a display area for player tracking terminals without changing the original gaming system.
UMIX allows promotional content, loyalty interfaces, or campaign visuals to appear on the same screen as the game.
UMIX is well suited for upgrading installed slot machines with new hardware functions while keeping the original display path in use.
